3KV HV Ceramic Disc Capacitor Pak 5pF to 10KpF 90 Pcs 18 Values

SKU: EP10

Technical Specification:

Type: Through Hole
Model: HV Ceramic Disc Capacitor
Lead Type: Radial
Capacitance Range: 5 pF – 10 KpF
Voltage Rating: 3 KV
Tolerance: ±10 %
Pak Weight: 60 gm
Pak Dimensions: 127 x 80 x 24 mm

₹545.00

Add to wishlist

Description

3KV HV Ceramic Disc Capacitor Pak 5pF to 10KpF 90 Pcs 18 Values

The 90 3KV HV Ceramic Disc Capacitor Pack offers a wide range of capacitor values perfect for high-voltage applications. Rated for 3KV, these capacitors are ideal for use in power supplies, RF circuits, and high-voltage electronics.

With 18 different capacitance values, this pack ensures versatility and flexibility for various projects. Each value comes with 5 pieces, providing ample components for your needs. These capacitors are designed for reliability, stability, and longevity in demanding environments.

Capacitor Symbol:

3KV Cap Part Code:

3KV Cap Structure:

Explore a wide range of capacitors for electronic projects, repairs, prototyping and circuit applications.

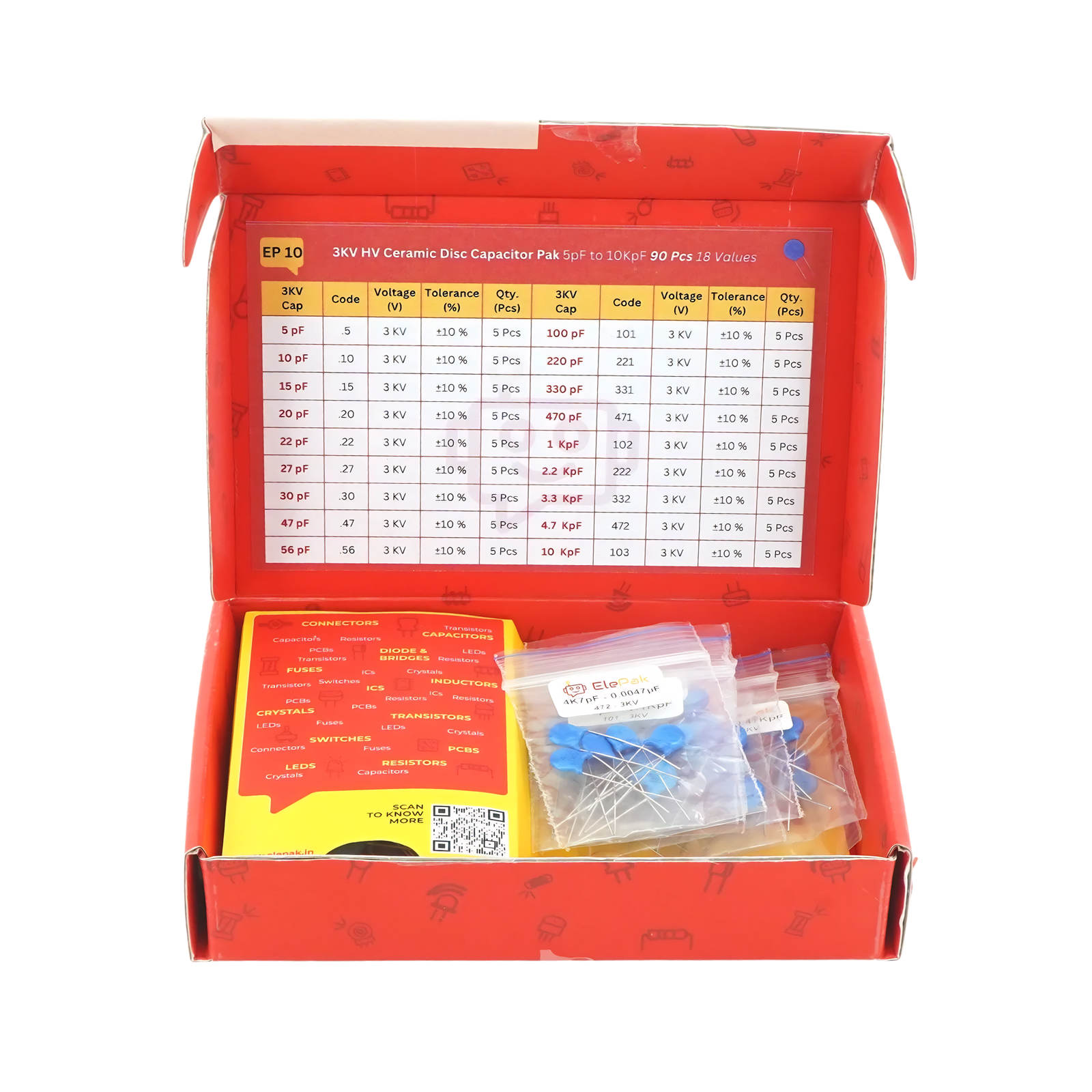

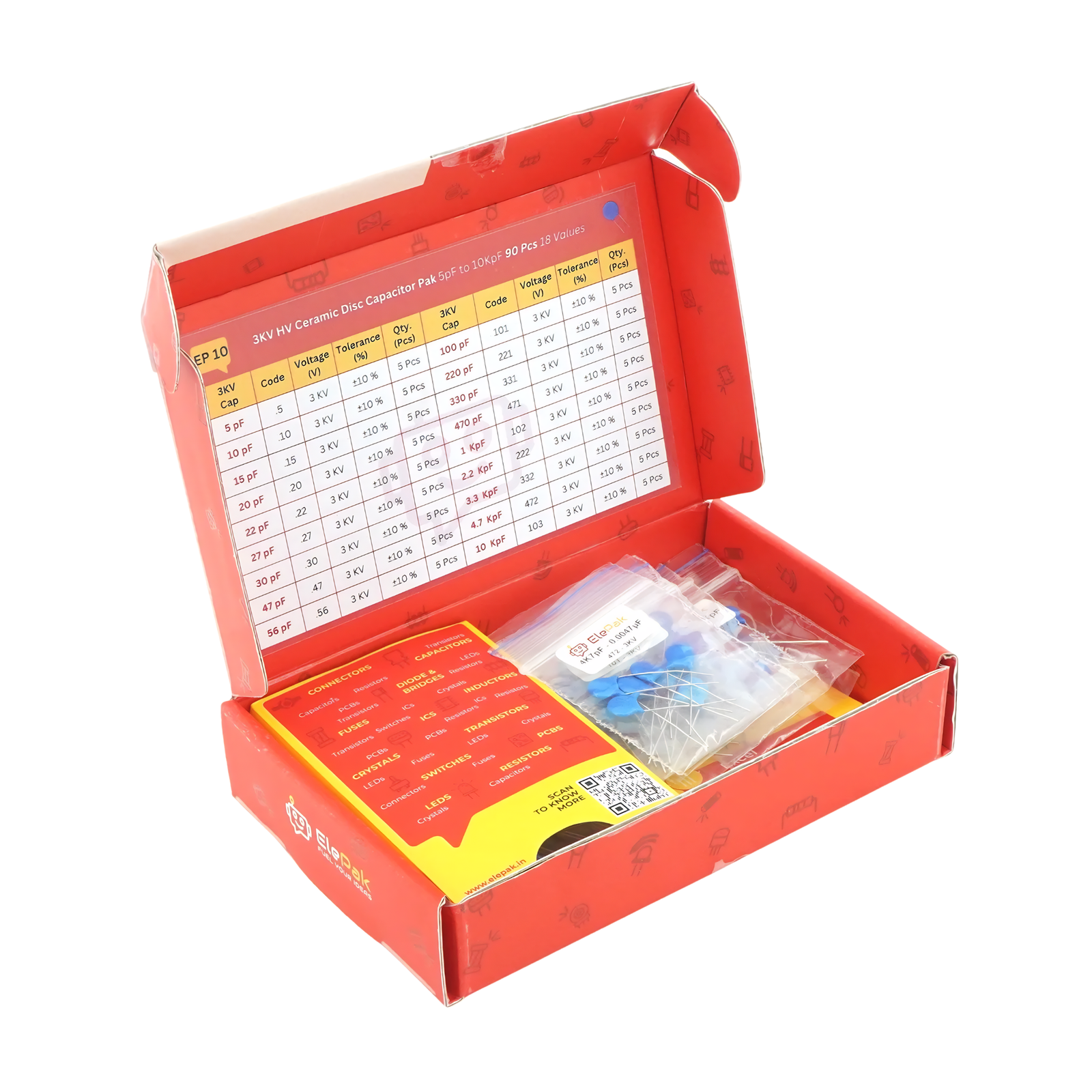

Package Includes

90 3KV HV Ceramic Disc Capacitor 18 Types

5 pF – 5 Pcs
10 pF – 5 Pcs
15 pF – 5 Pcs
20 pF – 5 Pcs
22 pF – 5 Pcs
27 pF – 5 Pcs
30 pF – 5 Pcs
47 pF – 5 Pcs
56 pF – 5 Pcs
100 pF – 5 Pcs
220 pF – 5 Pcs
330 pF – 5 Pcs
470 pF – 5 Pcs
1 KpF – 5 Pcs
2.2 KpF – 5 Pcs
3.3 KpF – 5 Pcs
4.7 KpF – 5 Pcs
10 KpF – 5 Pcs

Additional Information
FAQs

Features:

Suitable for high-voltage applications up to 3000V
Durable and stable performance in demanding environments
Ceramic disc design with radial leads for simple integration into circuits
Performs well in high-frequency circuits without significant loss

Applications:

Power Supply Filtering: Ideal for smoothing and filtering power supplies in high-voltage circuits
RF Circuits: Perfect for use in radio frequency circuits, providing stable performance at high frequencies
Voltage Multipliers: Used in circuits that require high voltage regulation or multiplication
Noise Suppression: Helps in suppressing electrical noise in sensitive electronic devices
Pulse Circuits: Effective in pulse and transient voltage applications due to their fast response time and high voltage tolerance

1. Are the capacitors in this pack polarized?

⋙ No, ceramic disc capacitors are non-polarized.

2. Can 3KV capacitors be used in AC circuits?

⋙ Yes, they can be used in both AC and DC high-voltage circuits.

3. How do I read the value codes on 3KV ceramic capacitors?

⋙ The three-digit code (e.g., 102) indicates capacitance in picofarads (e.g., 102 = 1000pF).

4. Can I use multiple 3KV capacitors in parallel or series?

⋙ Yes, connecting in parallel increases capacitance, while series increases voltage tolerance.

5. What’s the difference between 2KV and 3KV ceramic capacitors?

⋙ The 3KV versions can handle higher voltage levels and are more robust in high-stress environments.

6. Do these capacitors have high insulation resistance?

⋙ Yes, they typically have high insulation resistance, minimizing leakage current.

7. Is it safe to test 3KV capacitors with a multimeter?

⋙ For basic checks, yes—but only if fully discharged and using a meter rated for capacitor testing.

8. Is this capacitor pack suitable for DIY electronics?

⋙ Yes, it’s ideal for hobbyists, students, and electronics enthusiasts.

9. Is this pack suitable for repairing electronic appliances?

⋙ Yes, it’s great for general-purpose repair and maintenance work.

10. Can I purchase specific types individually rather than in a pack?

⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
