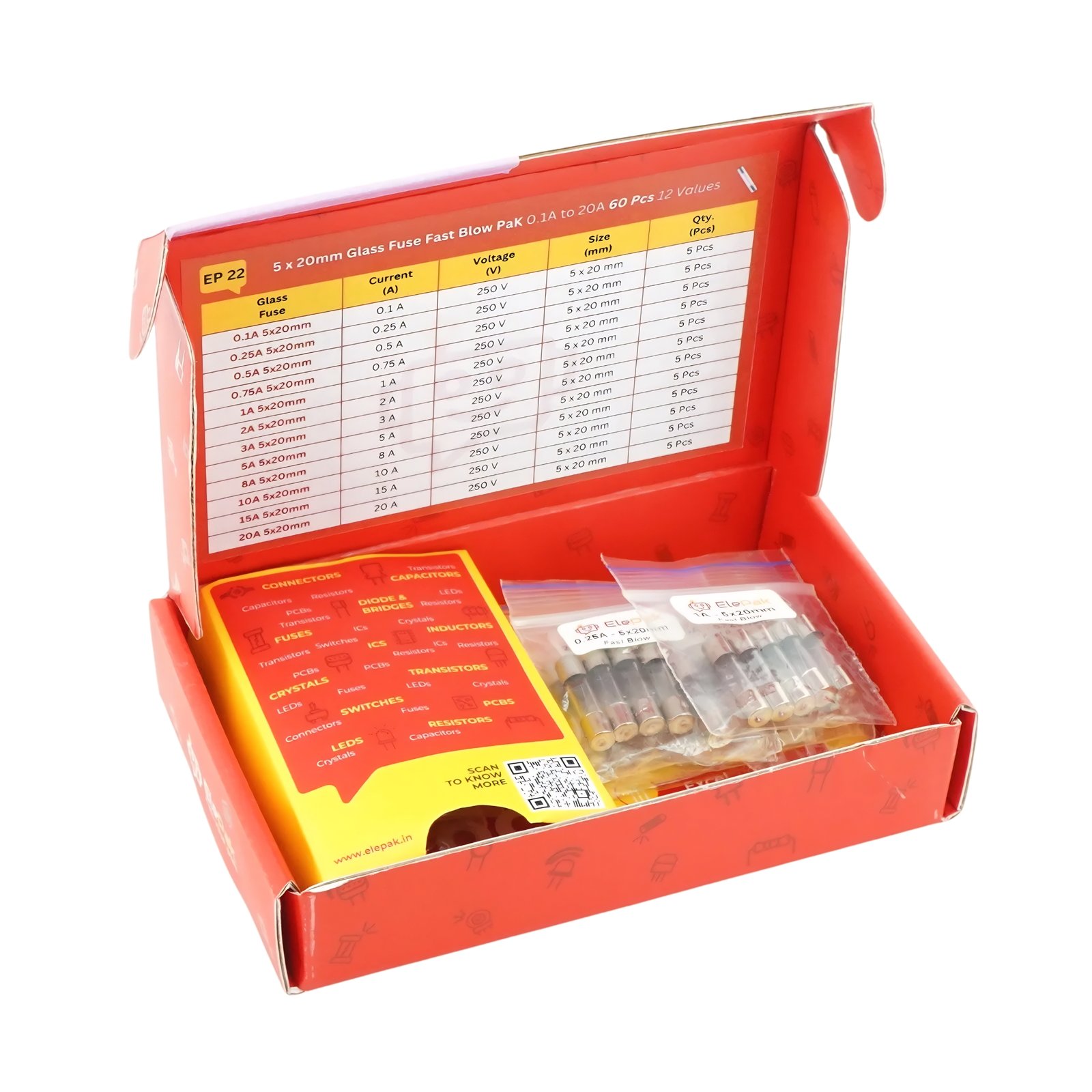

    5x20mm Glass Fuse Fast Blow Pak 0.1A to 20A 60 Pcs 12 Values

    SKU: EP22

    Technical Specification:

    • Type: Through Hole
    • Product Type: 5x20mm Glass Fuse Fast Blow Pak
    • Model: Glass Fuse
    • Size: 5 x 20 mm
    • Current Ratings: 0.1 A – 20 A
    • Voltage Rating: 250 V
    • Material:
      • Tube: Transparent glass
      • End Caps: Tin-plated brass or similar conductive material
    • Pak Weight: 100 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹285.00

    Add to wishlist

    Description

    5x20mm Glass Fuse Fast Blow Pak 0.1A to 20A 60 Pcs 12 Values

    The 5x20mm Glass Fuse Fast Blow Pak is a useful assortment designed to protect electrical and electronic circuits from overcurrent and short-circuit damage. It includes 60 glass fuses in 12 commonly used current ratings ranging from 0.1A to 20A, making it suitable for repairs, maintenance, prototyping and DIY electronics projects.

    Each fuse has a standard 5x20mm glass body that allows easy visual inspection of the fuse element. The fast-blow design responds quickly to sudden current increases and disconnects the circuit before sensitive components are damaged. The 5x20mm Glass Fuse Fast Blow Pak is suitable for use in power supplies, control boards, household appliances, chargers, testing equipment and various electronic devices.

    Fuse Symbol:

    Glass Fuse Part Code:

    Glass Fuse Structure:



    Explore quality fuses suitable for protecting electronic devices, circuits, appliances and DIY projects.

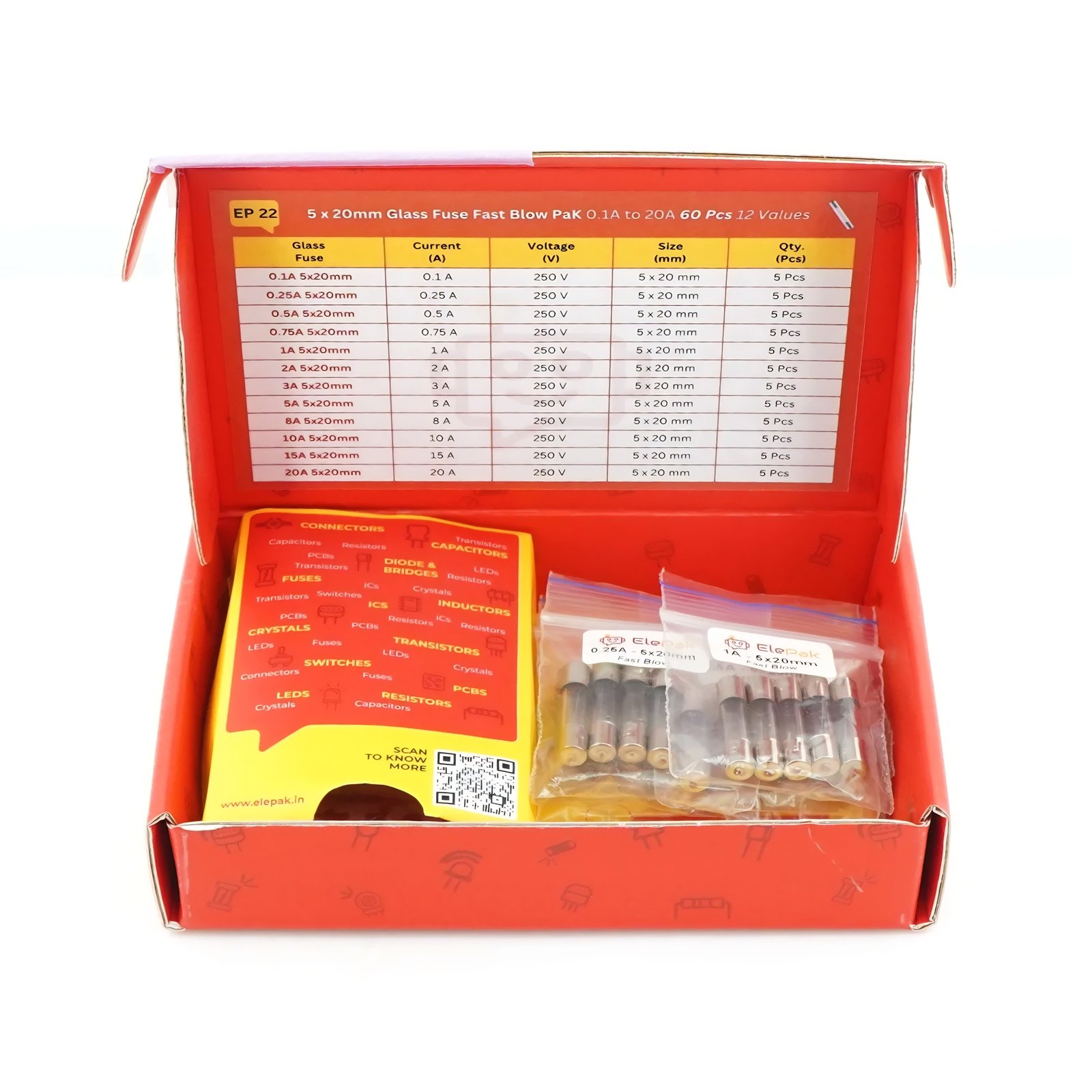

    Package Includes

    60 Glass Fuses 5 x 20 mm 12 Types

    • 0.1 A - 5 Pcs
    • 0.25 A - 5 Pcs
    • 0.5 A - 5 Pcs
    • 0.75 A - 5 Pcs
    • 1 A - 5 Pcs
    • 2 A - 5 Pcs
    • 3 A - 5 Pcs
    • 5 A - 5 Pcs
    • 8 A - 5 Pcs
    • 10 A - 5 Pcs
    • 15 A - 5 Pcs
    • 20 A - 5 Pcs

    Features:

    • Clear Visual Inspection
    • Compact Size
    • Cost-Effective
    • Fast Blow Response
    • Wide Availability
    • Reliable Protection
    • Standardized Ratings

    Applications:

    • Consumer Electronics: Protects TVs, radios, computers, and audio equipment from overcurrent
    • Home Appliances: Used in microwaves, refrigerators, washing machines, and more
    • Automotive Electronics: Safeguards vehicle lighting systems, audio, and control units
    • Power Supply Circuits: Protects power supplies from overcurrent and voltage spikes
    • Battery-Powered Devices: Used in toys, portable chargers, cameras, and flashlights
    • Industrial Applications: Ensures protection in power control panels and small motors
    • Solar Power Systems: Protects solar panels, inverters, and charge controllers
    • HVAC Systems: Safeguards control boards and motors in heating and cooling systems
    • Medical Equipment: Protects circuit components in medical devices for safety
    • Test and Measuring Equipment: Used for overcurrent protection in measuring instruments
    • Lighting Circuits: Protects light bulbs, LEDs, and fluorescent lighting circuits
    • Circuit Protection in Prototyping: Ideal for DIY and prototyping to prevent circuit damage
    1. What is the difference between the fuse ratings?

    The fuse rating indicates the maximum current the fuse can handle before it blows.

    2. Are these fuses fast-blow or slow-blow?

    These are fast-blow fuses, designed to blow quickly under overcurrent conditions.

    3. How do I choose the correct fuse rating?

    Choose a fuse with a rating that matches or slightly exceeds the device's normal operating current.

    4. What happens if I use a fuse with the wrong rating?

    Using an incorrect rating can cause either frequent fuse blowouts or inadequate protection, leading to potential damage.

    5. Are these fuses reusable?

    No, glass fuses are single-use and need to be replaced once blown.

    6. How can I tell if a fuse has blown?

    A blown fuse may show visible damage, or you can test it with a multimeter for continuity.

    7. Are the fuses individually labelled?

    Yes, each fuse type is neatly organized and labelled.

    8. Is this pack suitable for commercial electronic repairs?

    Yes, it is ideal for repair professionals and technicians.

    9. Can I use these fuses for DIY projects?

    Yes, they are commonly used in DIY electronic and prototyping projects.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
