MF58 NTC Thermistor Pak 1K to 1M 50 Pcs 10 Values

SKU: EP35

Technical Specification:

Type: Through Hole
Product Type: MF58 NTC Thermistor Pak
Model: MF58 NTC Thermistor
Resistance Values: 1 KΩ – 1 MΩ
Tolerance: ±5 %
Beta Value (B25/50): 3950 K – 4150 K
Thermal Time Constant: 7 – 15 s
Dissipation Factor: 2 – 5 mW/°C
Pak Weight: 80 gm
Pak Dimensions: 90 x 60 x 24 mm

₹545.00

Add to wishlist

Description

MF58 NTC Thermistor Pak 1K to 1M 50 Pcs 10 Values

The MF58 NTC Thermistor Pak is a useful assortment of glass-encapsulated, temperature-sensitive resistors for sensing, measurement and control circuits. It includes 50 thermistor resistors in 10 resistance values ranging from 1KΩ to 1MΩ, providing multiple options for prototyping, repair work and electronic product development.

MF58 NTC thermistor resistors decrease in resistance as the temperature increases, allowing circuits to detect and respond to thermal changes. The MF58 NTC Thermistor Pak is suitable for temperature controllers, digital thermometers, battery packs, household appliances, power supplies, sensor circuits and DIY electronics projects.

NTC Symbol:

MF58 NTC Structure:

Explore a wide range of NTC, PTC and SCK thermistors for temperature sensing, monitoring, protection and electronic control applications.

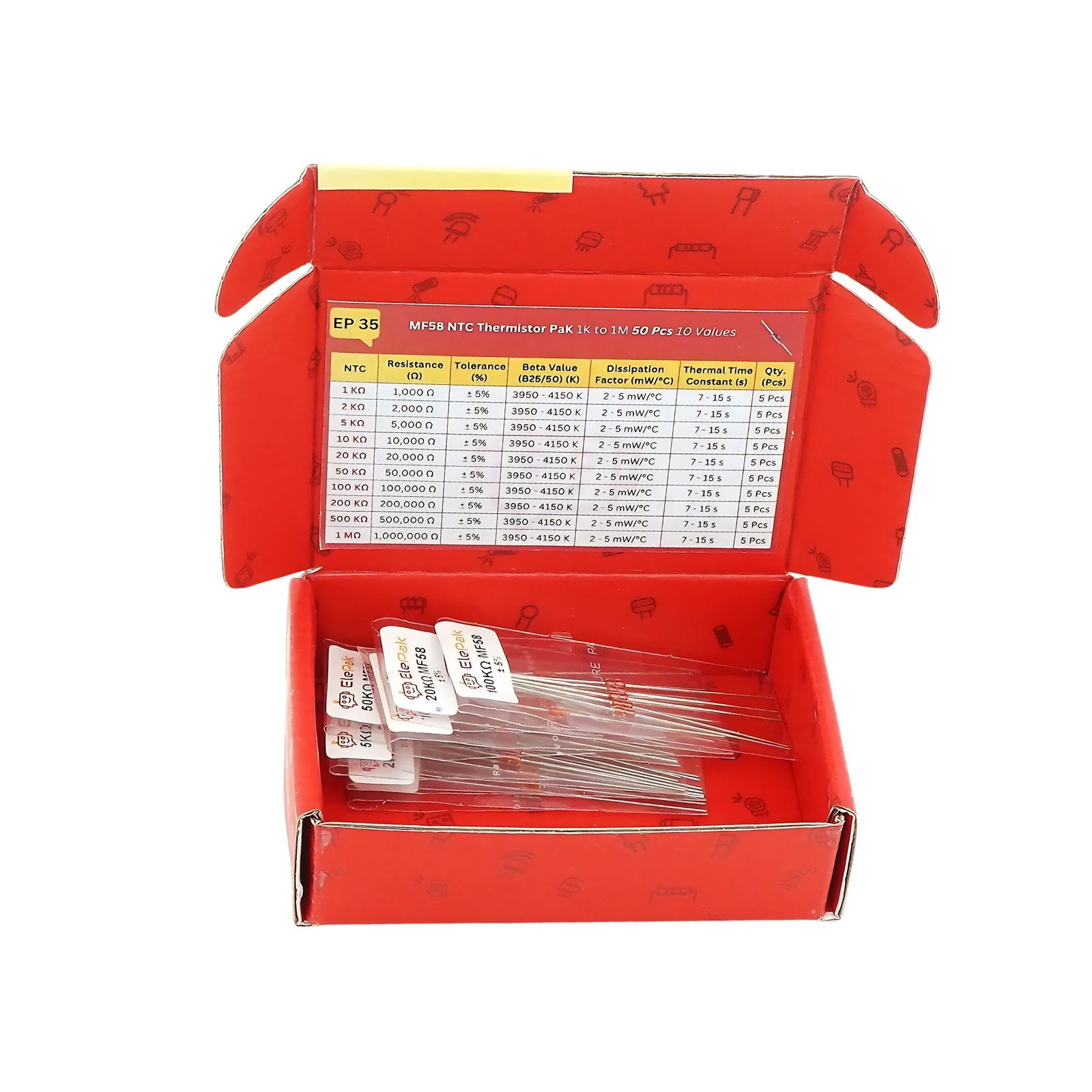

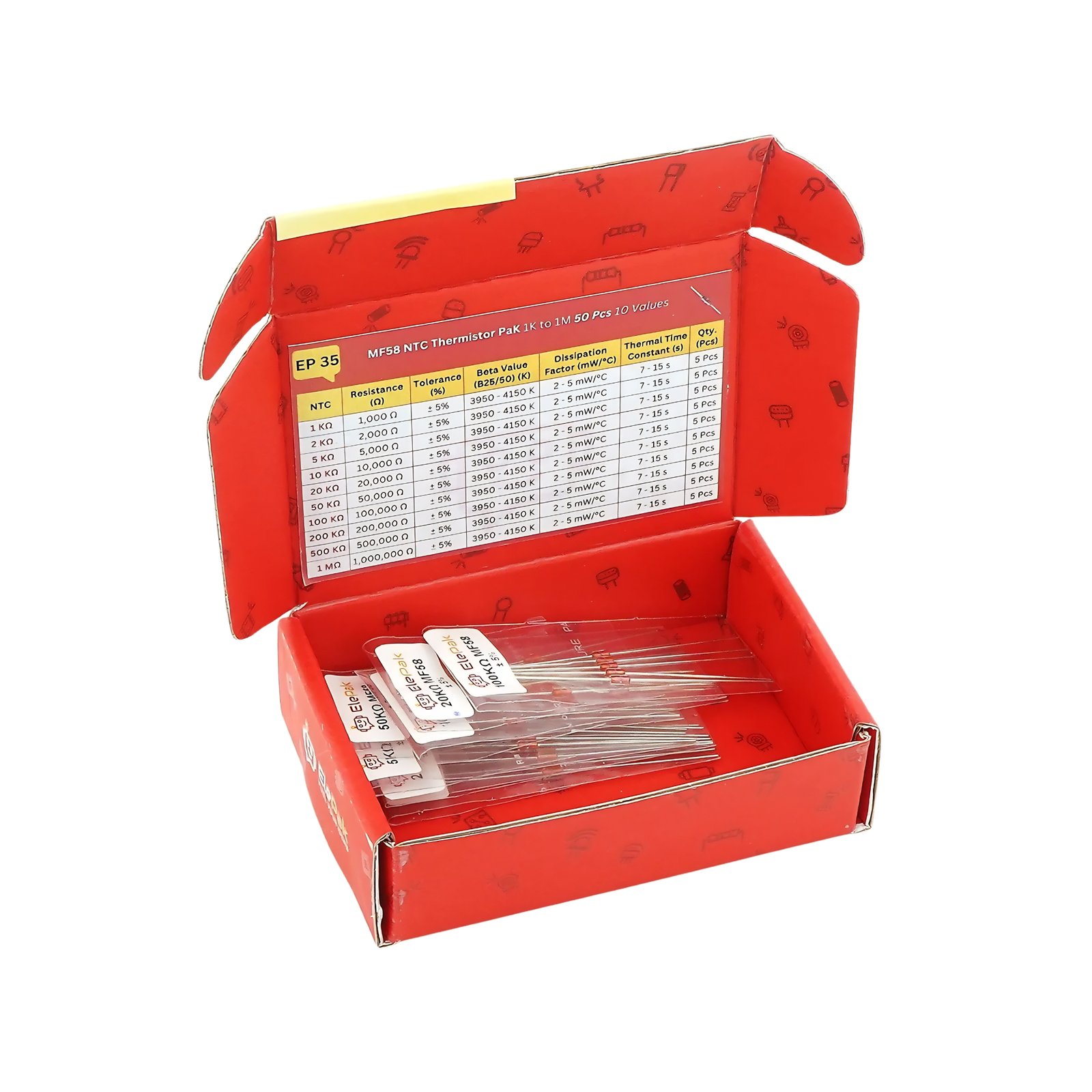

Package Includes

50 MF58 NTC Thermistor 10 Types

1 KΩ - 5 Pcs
2 KΩ - 5 Pcs
5 KΩ - 5 Pcs
10 KΩ - 5 Pcs
20 KΩ - 5 Pcs
50 KΩ - 5 Pcs
100 KΩ - 5 Pcs
200 KΩ - 5 Pcs
500 KΩ - 5 Pcs
1 MΩ - 5 Pcs

Additional Information
FAQs

Features:

High sensitivity with rapid response to temperature changes
Compact and durable glass-encapsulated design
Precise temperature measurement
Fast thermal response
Low power consumption for efficient operation
Easy to use with long tinned copper leads for soldering
Reliable performance over a wide temperature range
Cost-effective solution for temperature-related applications

Applications:

Temperature sensing and measurement - Used in electronic circuits to detect temperature variations
Overheat protection in power supplies and batteries - Prevents overheating by monitoring temperature
Temperature compensation in electronic circuits - Stabilizes circuit performance against temperature fluctuations
HVAC systems - Regulates temperature in air conditioners and heating systems
Home appliances - Used in refrigerators, water heaters, and ovens for temperature control
Automotive temperature monitoring - Helps regulate engine and battery temperatures
Medical devices and equipment - Ensures accurate temperature readings in medical sensors
Industrial automation and process control - Maintains optimal working conditions in machinery
Solar power systems and inverters - Monitors temperature to prevent overheating in solar panels

1. Can MF58 thermistors be used for PCB mounting?

Yes, they have long tinned copper leads, making them easy to solder onto PCBs and breadboards.

2. Can MF58 thermistors be used in AC and DC circuits?

Yes, they can be used in both AC and DC circuits for temperature sensing and regulation.

3. What happens if an NTC thermistor is connected backward?

Nothing changes; NTC thermistors are non-polarized and work the same in both directions.

4. How do I test an MF58 thermistor with a multimeter?

Measure its resistance at room temperature, then heat it slightly and check if the resistance decreases.

5. How do I connect an MF58 thermistor to a circuit?

Typically connected in series with a pull-up resistor to form a voltage divider for temperature measurement.

6. Are MF58 thermistors sensitive to pressure?

No, they are primarily sensitive to temperature changes.

7. Are MF58 thermistors compatible with ESP8266?

Yes, they work with ESP8266 via an ADC input and a pull-up resistor.

8. What makes MF58 thermistors unique?

They have a glass-coated body, making them more durable and heat-resistant than epoxy-coated thermistors.

9. Can I connect an MF58 thermistor directly to a battery?

No, it must be part of a voltage divider or sensing circuit.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request
