Universal PTH PCB 2.54mm Pak 10 Pcs 5 Types

Universal PTH PCB 2.54mm Pak 10 Pcs 5 Types - Image 2

360 product view

Click to enlarge

Universal PTH PCB 2.54mm Pak 10 Pcs 5 Types - Image 4

Universal PTH PCB 2.54mm Pak 10 Pcs 5 Types

SKU: EP36

Technical Specification:

Type: Through Hole
Model: General Purpose PCB
Board Thickness: 1.6 mm
Copper Layer: Double-Sided
Hole Diameter: 1.0 mm
Hole Pitch: 2.54 mm
Copper Thickness: 35 µm
Solder Mask: Green (Standard)
Pak Weight: 110 gm
Pak Dimensions: 127 x 80 x 24 mm

₹285.00

Add to wishlist

Description

Universal PTH PCB 2.54mm Pak 10 Pcs 5 Types

The Universal PTH PCB 2.54mm Pak is a convenient assortment of prototyping boards for building, testing and repairing electronic circuits. This pack contains 10 PCBs in 5 different types, providing suitable options for small experiments, custom circuit designs and component assembly.

Each board features a standard 2.54mm hole spacing, making it compatible with commonly used through-hole components such as resistors, capacitors, IC sockets, headers and connectors. The Universal PTH PCB 2.54mm Pak is suitable for students, hobbyists, technicians and developers working on DIY electronics, sensor circuits, power modules and prototype projects.

PCB Symbol:

PCB Structure:

Explore a wide range of general-purpose PCBs for prototyping, circuit assembly, testing, repairs and DIY electronics projects.

Package Includes

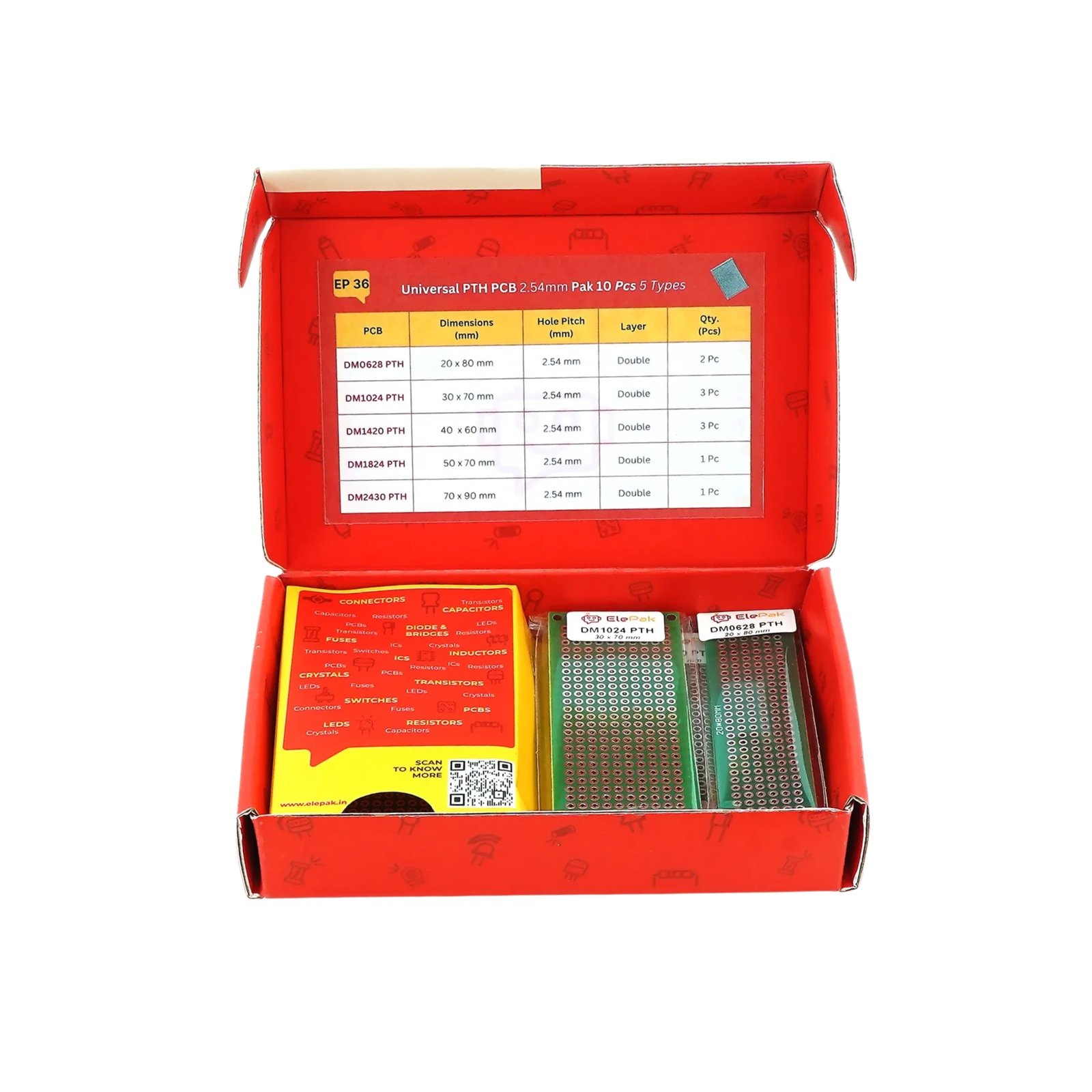

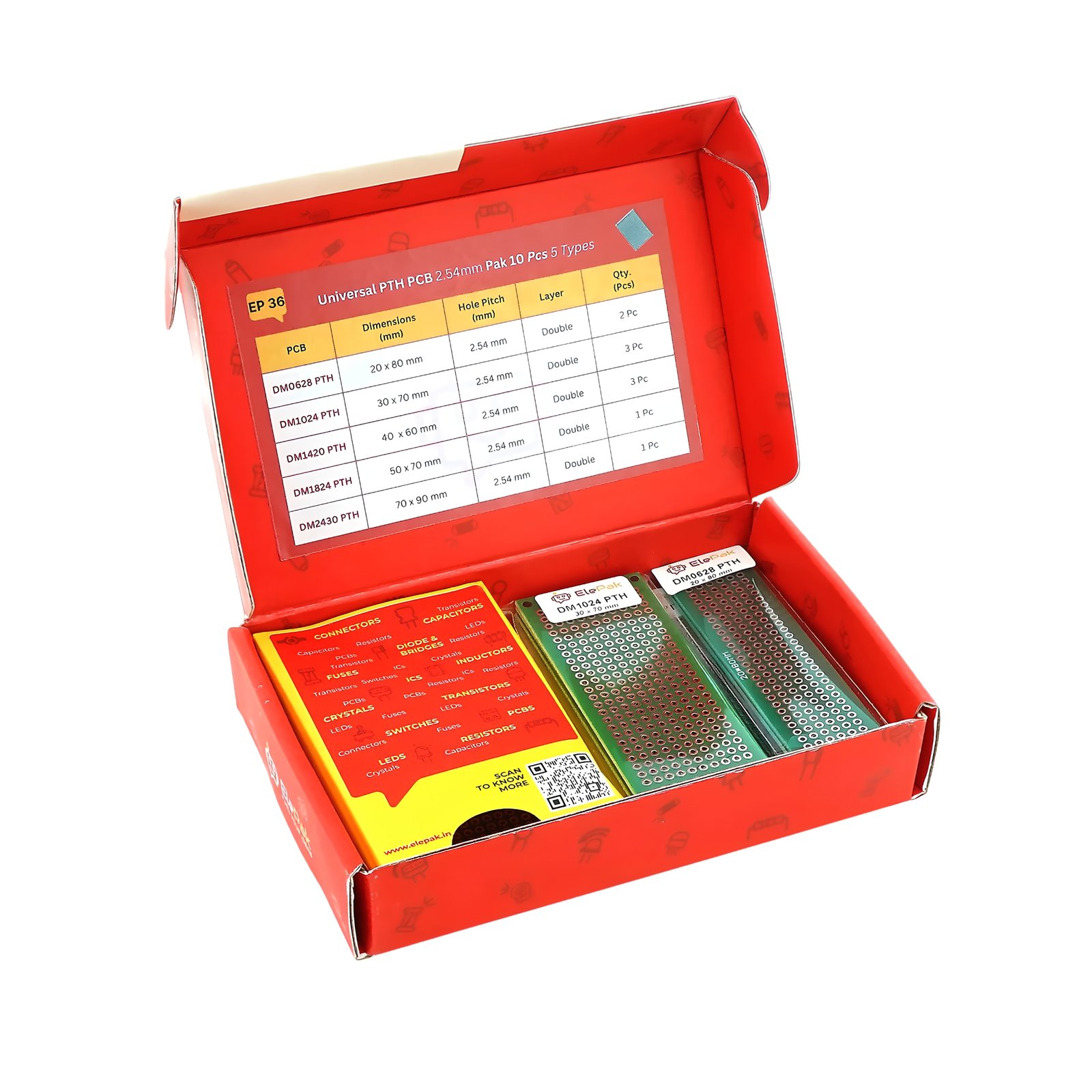

10 General Purpose PTH PCB 2.54mm 5 Types

DM0628 - 2 Pc
DM1024 - 3 Pc
DM1420 - 3 Pc
DM1824 - 1 Pc
DM2430 - 1 Pc

Additional Information
FAQs

Features:

Easy prototyping and circuit testing
Standard 2.54mm pitch for DIP components
Durable FR4 material with high heat resistance
Strong electrical and mechanical connections
Pre-drilled holes for easy soldering

Applications:

Prototyping and circuit development - Ideal for testing circuit designs before final production
DIY electronics and hobby projects - Suitable for building custom electronic projects
Educational and training purposes - Used in labs and workshops for learning circuit assembly
Custom circuit design and testing - Allows flexible design modifications and troubleshooting
Repair and modification of existing circuits - Helps in fixing or upgrading electronic devices
Small-scale electronic production - Cost-effective for low-volume PCB-based projects
Sensor and module interfacing - Supports easy integration of sensors and modules
Power supply and converter circuits - Used for assembling power-related circuits
Microcontroller and embedded system projects - Ideal for Arduino, Raspberry Pi, and other boards
Communication and IoT device prototyping - Enables quick assembly of IoT-based circuits

1. What is a PTH PCB?

A PTH PCB has plated-through holes that allow for electrical connections between layers.

2. Are PTH PCBs reusable?

Yes, PTH PCBs can be reused as long as the pads and holes are not damaged.

3. How do I solder components onto a PTH PCB?

Components are soldered through the plated holes using standard soldering techniques.

4. How do I choose the right PTH PCB for my project?

Consider the size, hole pitch, and layer type based on the components and design of your project.

5. Do PTH PCBs come with a solder mask?

Yes, PTH PCBs typically come with a solder mask to prevent accidental soldering and protect the copper traces.

6. Can I use SMD (Surface Mount Devices) on PTH PCBs?

Yes, SMD components can be used alongside through-hole components, but they require a different soldering method.

7. Can I use the PCBs in the pack for different types of circuits?

Yes, the PCBs in the pack can be used for a variety of circuits, including analog, digital, and power circuits.

8. Is the pack suitable for beginners in electronics?

Yes, the pack is great for beginners as it provides a variety of options for experimentation and learning.

9. Are the PCBs in the pack compatible with most standard components?

Yes, the PCBs in the pack are designed to be compatible with most standard through-hole components.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
