    SMD to DIP Adapter PCB Pak SOP/SSOP/TSOP 50 Pcs 7 Types

    SKU: EP37

    Technical Specification:

    • Type: Through Hole
    • Model: SMD PCB
    • Supported Packages: SOP, SSOP, MSOP, SOT23
    • Pin Configurations: 8 – 28 Pins
    • Board Thickness: 1.6 mm
    • Copper Layer Thickness: 35 µm
    • Pin Pitch: 2.54 mm
    • Pad Pitch: 0.65 / 1.27 mm, 0.5 / 0.95 mm
    • Pak Weight: 80 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹590.00

    Add to wishlist

    Description

    SOP/SSOP/TSOP to DIP Adapter PCB Pak 50 Pcs 7 Types

    The SOP/SSOP/TSOP to DIP Adapter PCB Pak is a versatile assortment designed for converting surface-mount IC packages into a convenient DIP format. It contains 50 adapter PCBs in 7 different types, making it useful for circuit development, component testing, repair work and electronics prototyping.

    These adapter boards simplify the use of compact SOP, SSOP and TSOP ICs with breadboards, universal PCBs and standard through-hole circuits. The SOP/SSOP/TSOP to DIP Adapter PCB Pak is suitable for engineers, technicians, students and hobbyists working on IC testing, custom circuit assembly, development boards and DIY electronic projects.

    PCB Symbol:

    SOP/SSOP/TSOP to DIP Adapter PCB Pak



    Explore a wide range of SMD breakout boards for prototyping, circuit assembly, testing, repairs and DIY electronics projects

    Package Includes

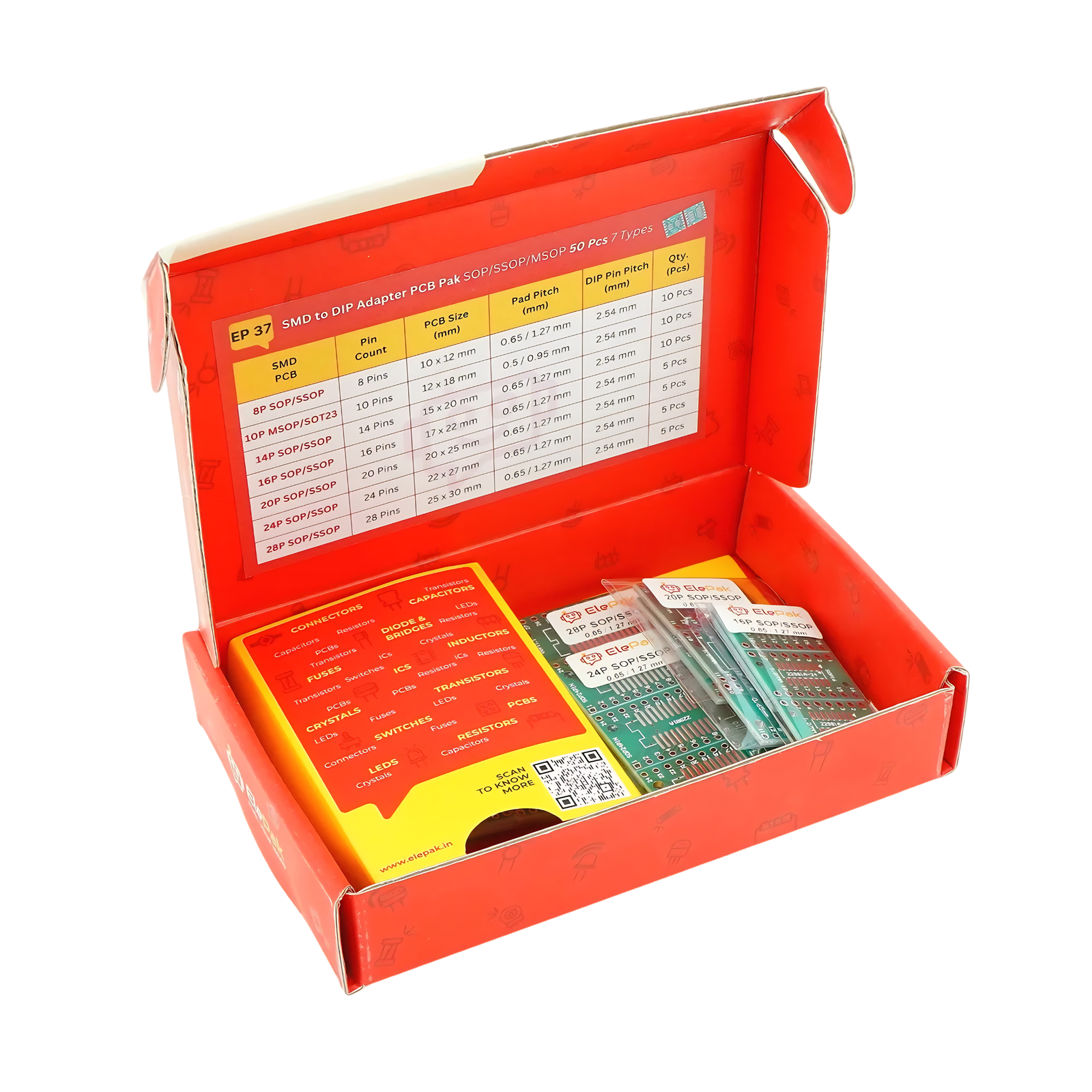

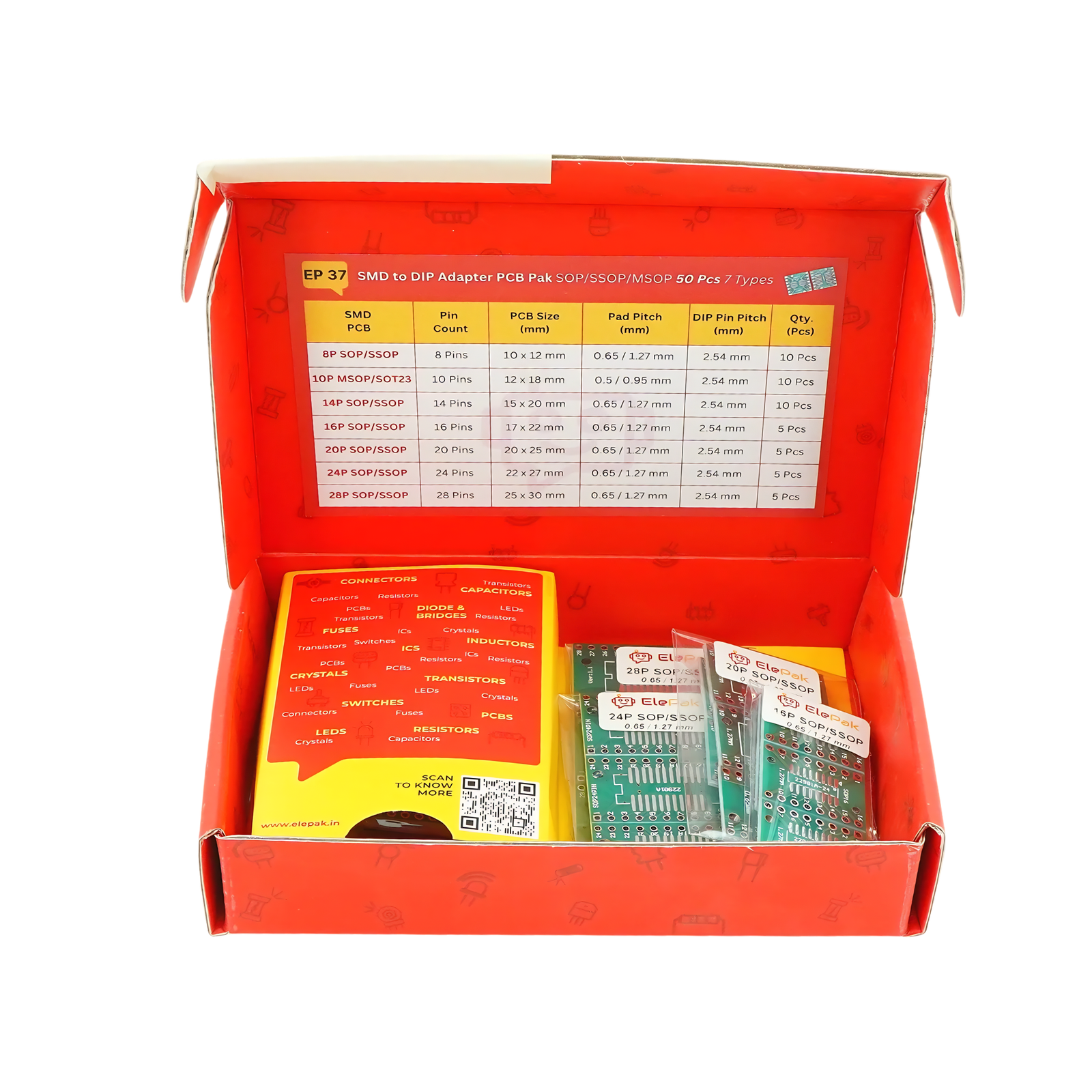

    50 SOP/SSOP/MSOP/SOT23 to DIP Adapter PCB 7 Types

    • 8 Pin SOP/SSOP - 10 Pcs
    • 10 Pin MSOP/SOT23 - 10 Pcs
    • 14 Pin SOP/SSOP - 10 Pcs
    • 16 Pin SOP/SSOP - 5 Pcs
    • 20 Pin SOP/SSOP - 5 Pcs
    • 24 Pin SOP/SSOP - 5 Pcs
    • 28 Pin SOP/SSOP - 5 Pcs

    Features:

    • Easy prototyping with breadboards and DIP circuits
    • Simplifies soldering of small-pitch SMD components
    • Compatible with standard DIP sockets and through-hole PCBs
    • Double-sided design supports multiple package types
    • Gold-plated or tinned pads for reliable connections
    • No need for expensive reflow soldering equipment
    • Reduces risk of damage to delicate SMD components
    • Useful for electronics development, testing, and repair

    Applications:

    • Prototyping: Easily test surface-mount ICs with breadboards and through-hole circuits
    • Circuit Development: Use SMD components in DIP-based PCB designs
    • Component Testing: Evaluate and troubleshoot SMD ICs before final integration
    • Electronics Repair: Replace faulty SMD components with easier-to-handle DIP alternatives
    • Educational Projects: Help students and beginners learn about surface-mount technology
    • Custom Module Design: Convert SMD sensors, controllers, or ICs into user-friendly DIP modules
    • Embedded Systems: Integrate small-pitch microcontrollers and memory ICs into experimental setups
    1. How do I convert an SMD IC to DIP?

    You can use an SOP/SSOP/TSOP to DIP adapter PCB by soldering the SMD IC onto it and connecting the DIP pins.

    2. Can I use these adapters for Arduino projects?

    Yes, they help integrate SMD sensors, ICs, and modules into Arduino-based projects.

    3. Can I hand-solder an SMD IC onto the adapter PCB?

    Yes, but fine-tip soldering irons and flux are recommended for precision.

    4. Can I use these adapters for dual-row SMD components?

    No, these are designed for single-row SOP/SSOP/TSOP ICs. Dual-row components require different adapters.

    5. How do I choose between SSOP and TSOP adapters?

    TSOP adapters are used for thinner ICs with smaller pitches, while SSOP is a compact version of SOP with a moderate pitch.

    6. Are there adapters for fine-pitch TSOP ICs (≤0.5mm pitch)?

    Yes, but soldering very fine-pitch ICs (0.4mm or lower) requires precise tools like hot air or reflow stations.

    7. Can I stack multiple adapters for compact designs?

    Yes, but ensure proper alignment, insulation, and signal integrity when stacking multiple adapters.

    8. Do all adapters in a pack have plated through-holes?

    Most have plated through-holes for DIP pin connections, ensuring stronger mechanical support.

    9. Can I use multiple adapters from a pack on a single project?

    Yes, different adapters can be used in various circuit sections based on the ICs required.

    10. Can I purchase specific types individually rather than in a pack?

    This product is sold as a complete pack, but individual types may be available separately upon bulk request.
