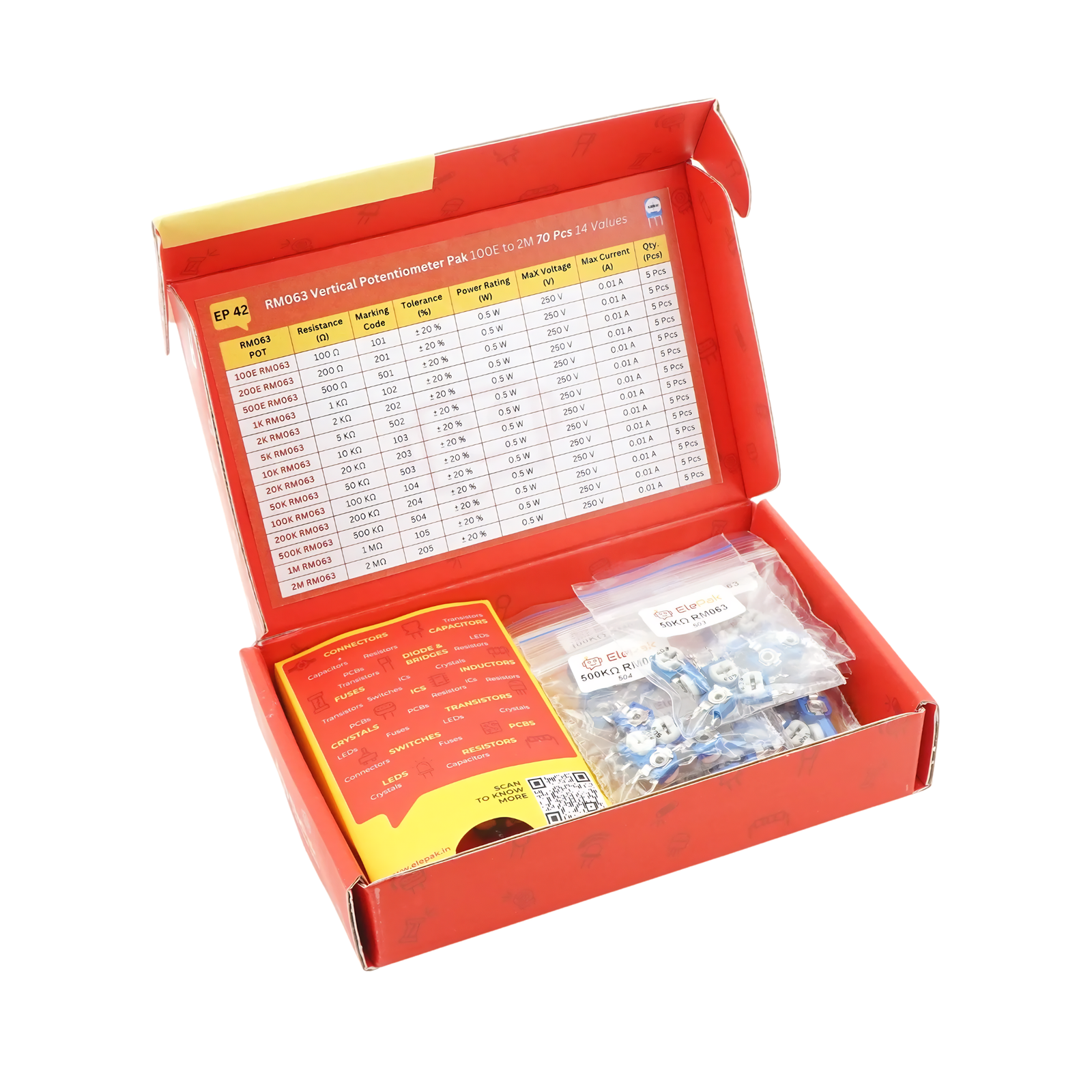

RM063 Vertical Potentiometer Pak 100E to 2M 70 Pcs 14 Values

RM063 Vertical Potentiometer Pak 100E to 2M 70 Pcs 14 Values - Image 2

360 product view

Click to enlarge

RM063 Vertical Potentiometer Pak 100E to 2M 70 Pcs 14 Values - Image 4

RM063 Vertical Potentiometer Pak 100E to 2M 70 Pcs 14 Values

SKU: EP42

Technical Specification:

Type: Through Hole
Model: RM063 Vertical Potentiometer
Resistance Values: 100 Ω – 2M Ω
Tolerance: ± 20 %
Power Rating: 0.5 W
Max Voltage: 250 V
Max Current: 0.01 A
Pak Weight: 80 gm
Pak Dimensions: 127 x 80 x 24 mm

₹545.00

Add to wishlist

Description

RM063 Vertical Potentiometer Pak 100E to 2M 70 Pcs 14 Values

The RM063 Vertical Potentiometer Pak is a practical assortment of compact adjustable resistors designed for circuit calibration, voltage adjustment and signal control. This pack includes 70 potentiometers in 14 resistance values ranging from 100Ω to 2MΩ, offering a broad selection for prototyping, repairs and component replacement.

Its vertical mounting design helps save PCB space and allows convenient adjustment using a screwdriver. The RM063 Vertical Potentiometer Pak is suitable for power supplies, amplifier circuits, sensor modules, control boards, audio equipment, testing devices and DIY electronics projects.

Potentiometer Symbol:

RM063 POT Pin Configuration:

PIN 1: Input (A) – Connects to the input voltage or signal
PIN 2: Wiper (W) – Adjustable output, the variable connection point controlled by the potentiometer
PIN 3: Output (B) – Connects to the output voltage or signal, depending on the adjustment of the wiper

Explore a wide range of cermet presets for precise resistance adjustment, circuit calibration, testing and electronic applications.

Package Includes

70 RM063 Vertical Potentiometer 14 Values

100 Ω - 5 Pcs
200 Ω - 5 Pcs
500 Ω - 5 Pcs
1 KΩ - 5 Pcs
2 KΩ - 5 Pcs
5 KΩ - 5 Pcs
10 KΩ - 5 Pcs
20 KΩ - 5 Pcs
50 KΩ - 5 Pcs
100 KΩ - 5 Pcs
200 KΩ - 5 Pcs
500 KΩ - 5 Pcs
1 MΩ - 5 Pcs
2 MΩ - 5 Pcs

Additional Information
FAQs

Features:

Precise vertical adjustment
Durable with 0.5W power rating
Compact design for tight spaces
Suitable for low-power applications
Versatile for audio, lighting, and circuit tuning
Cost-effective

Applications:

Audio Control: Adjusts volume, tone, or balance in audio systems
Lighting Control: Used for dimming or adjusting brightness in lighting circuits
Circuit Calibration: Fine-tunes resistance for precise testing and tuning in electronic circuits
Prototyping: Enables flexibility in resistance settings for developing new electronic designs
Signal Adjustment: Allows precise control of voltage or signal levels in various devices

1. Can I replace a potentiometer with a fixed resistor?

No, a potentiometer provides adjustable resistance, unlike a fixed resistor.

2. How does the wiper of a potentiometer work?

The wiper moves along the resistive track, adjusting the resistance and thereby controlling the output.

3. Can I use multiple potentiometers in a single circuit?

Yes, multiple potentiometers can be used to control different parameters or adjust separate parts of a circuit.

4. Can potentiometers be used in combination with other electronic components?

Yes, potentiometers can be used with resistors, capacitors, transistors, and other components for various control and calibration tasks.

5. Are RM063 potentiometers available in both single and dual types?

The RM063 series typically offers single potentiometers, not dual-type configurations.

6. Can potentiometers be used for motor control in robotics?

Yes, potentiometers can be used to adjust motor speed or position in robotic systems.

7. Can RM063 potentiometers be used in circuit board prototypes?

Yes, RM063 potentiometers are ideal for prototyping and testing circuit adjustments.

8. Can I use RM063 potentiometers in both analog and digital circuits?

Yes, they are compatible with both analog and digital circuits, though they are more commonly used in analog circuits.

9. Can RM063 potentiometers be stacked or used in a multi-turn configuration?

RM063 potentiometers are typically single-turn, not multi-turn, and are not meant to be stacked.

10. Can I purchase specific types individually rather than in a pack?

This product is sold as a complete pack, but individual types may be available separately upon bulk request.
