    SMD Diode SMA Pak 250 Pcs 20 Types

    SKU: EP509

    Technical Specification:

    • Type: SMD
    • Model: SMA Diode
    • Package Type: DO – 214AC
    • Voltage: 50 V – 1000 V
    • Current: 1 A – 5 A
    • Max. Recovery Current: 25 nS – 100 nS
    • Max. Forward Voltage: 0.45 V – 1.1 V
    • Pak Weight: 100 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹645.00

    Add to wishlist

    Description

    SMD Diode SMA Pak 250 Pcs 20 Types

    The SMD Diode SMA Pack is a comprehensive assortment of surface-mount diodes for circuit design, maintenance, testing and electronic repairs. This pack contains 250 diodes in 20 different types, providing a convenient selection for working with various power, protection and signal applications.

    Built in the compact SMA package, these diodes are suitable for space-saving PCB layouts and surface-mount assembly. The SMD Diode SMA Pack can be used for rectification, switching, voltage clamping, reverse-polarity protection and surge protection in power supplies, chargers, control boards, communication equipment and DIY electronics projects.

    Diode Symbol:

    Diode Structure:

    Explore a wide range of diodes for rectification, switching, voltage protection and electronic circuit applications.

    Package Includes

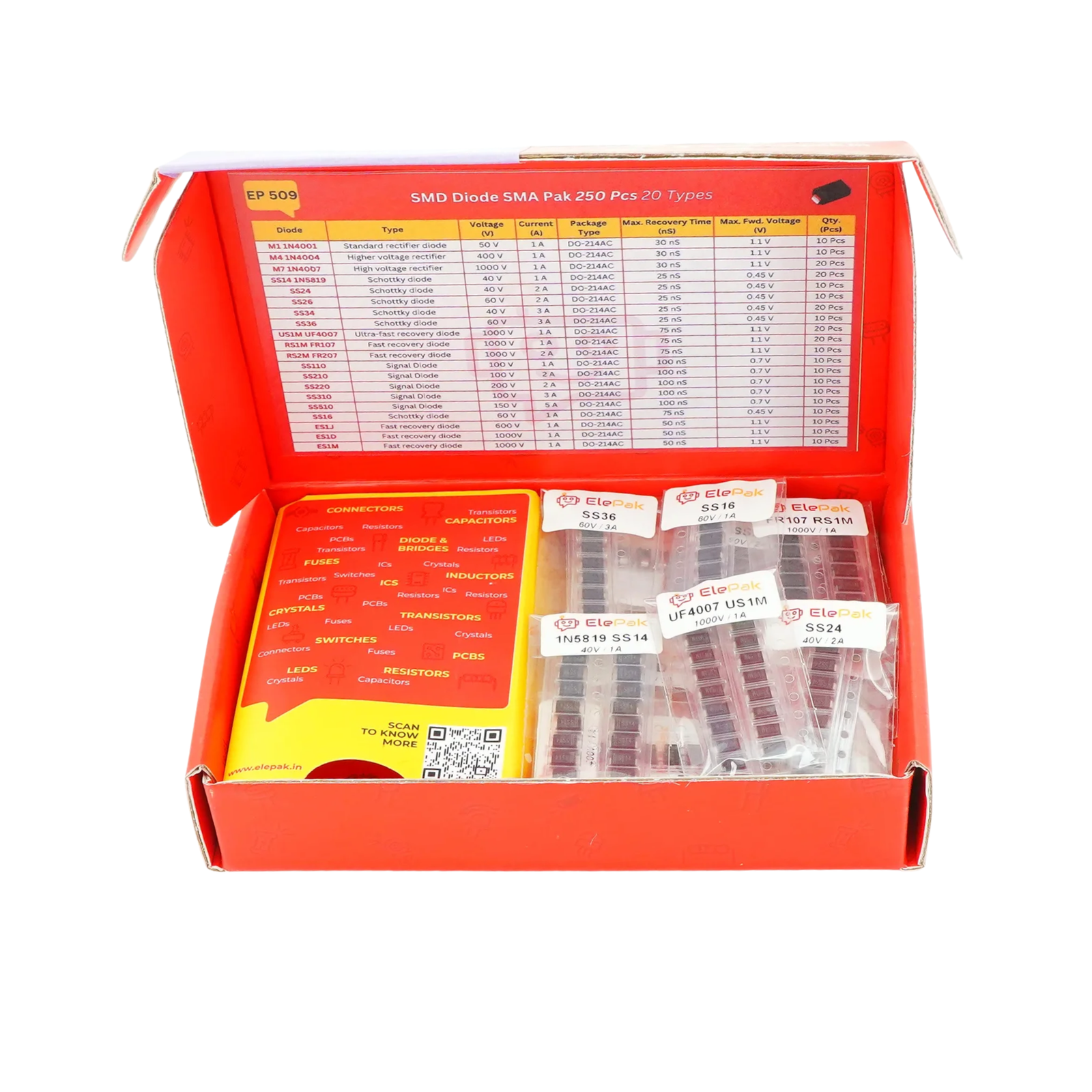

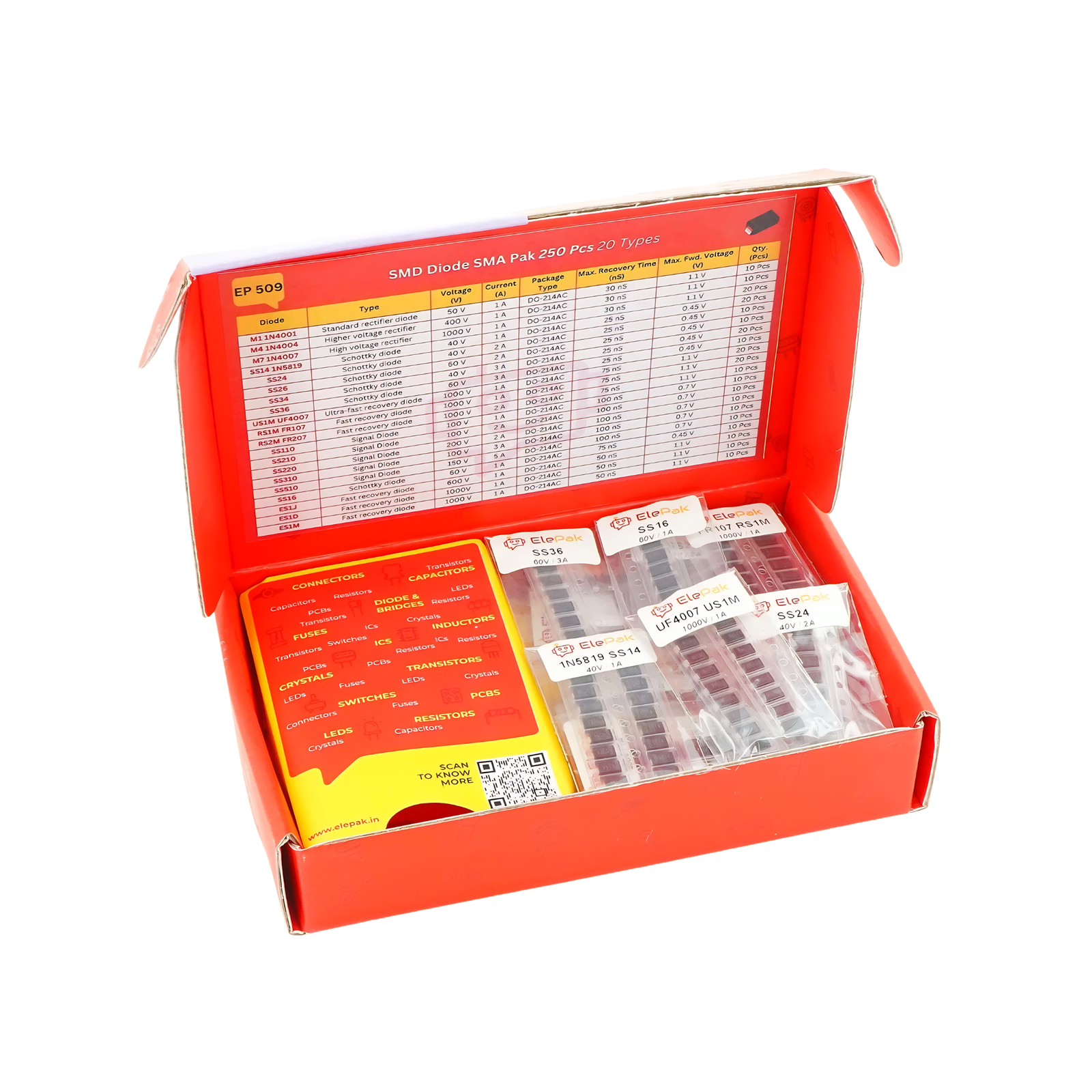

    250 SMD SMA Diode 20 Types

    • M1 1N4001 – 10 Pcs
    • M4 1N4004 – 10 Pcs
    • M7 1N4007 – 20 Pcs
    • SS14 1N5819 – 20 Pcs
    • SS24 – 10 Pcs
    • SS26 – 10 Pcs
    • SS34 – 20 Pcs
    • SS36 – 10 Pcs
    • US1M UF4007 – 20 Pcs
    • RS1M FR107 – 20 Pcs
    • RS2M FR207 – 10 Pcs
    • SS110 – 10 Pcs
    • SS220 – 10 Pcs
    • SS310 – 10 Pcs
    • SS510 – 10 Pcs
    • SS16 – 10 Pcs
    • ES1J – 10 Pcs
    • ES1D – 10 Pcs
    • ES1M – 10 Pcs

    Features:

    • Compact & Space-Saving
    • Efficient Heat Dissipation
    • Low Power Loss
    • Fast Switching Speed
    • High Reliability & Durability

    Applications:

    • Bridge Rectifiers - Converts AC to DC in power supply circuits
    • Voltage Clamping - Protects circuits from voltage spikes and transients
    • Polarity Protection - Prevents damage from reverse voltage connections
    • DC-DC Converters - Enhances power efficiency in voltage regulation circuits
    • Switching Power Supplies (SMPS) - Ensures efficient power conversion in electronic devices
    1. Do these diodes require heat sinks?

    ⋙ Generally, no, as the SMA package is designed for efficient heat dissipation.

    2. Are these diodes suitable for AC-to-DC conversion?

    ⋙ Yes, rectifier diodes like 1N4007 and RS2M are commonly used in AC-DC power supplies.

    3. What is the difference between ES1J, ES1D, and ES1M?

    ⋙ They are fast recovery diodes with different voltage ratings: ES1D (200V), ES1J (600V), ES1M (1000V).

    4. How do I test these diodes with a multimeter?

    ⋙ Set the multimeter to diode mode; a working diode will show a voltage drop in one direction and an open circuit in the other.

    5. Can I use these diodes in parallel for higher current capacity?

    ⋙ Yes, but proper balancing resistors may be needed to ensure equal current distribution.

    6. Which diodes in this pack are best for low power loss applications?

    ⋙ Schottky diodes (SS14, SS34, SS510) have low forward voltage drop and minimal power loss.

    7. Do these diodes work with both AC and DC circuits?

    ⋙ Yes, rectifier diodes convert AC to DC, while other types work in DC circuits.

    8. Can these diodes be used in Arduino or Raspberry Pi circuits?

    ⋙ Yes, they can be used for polarity protection and power regulation in microcontroller circuits.

    9. Are the diodes in this pack polarized?

    ⋙ Yes, all diodes are polarized and must be placed correctly in circuits.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
