    SMD Bridge Pak 90 Pcs 8 Types

    SKU: EP510

    Technical Specification:

    • Type: SMD
    • Model: Bridge Rectifier
    • Package Type: SOP – 4
    • Max Rev. Voltage: 600 V – 1000 V
    • Max Fwd. Current: 1 A – 2 A
    • Fwd. Voltage Drop: 1.1 V
    • Pak Weight: 60 gm
    • Pak Dimensions: 127 x 80 x 24 mm

    ₹385.00

    Add to wishlist

    Description

    SMD Bridge Pak 90 Pcs 8 Types

    The SMD Bridge Pak is a practical assortment of surface-mount bridge rectifiers designed for converting AC input into DC output in electronic circuits. This pack contains 90 components in 8 different types, providing useful options for circuit assembly, testing, repairs and component replacement.

    Its compact surface-mount design makes it suitable for space-saving PCB layouts and modern electronic devices. The SMD Bridge Pak can be used in power supplies, battery chargers, LED drivers, adapters, control boards, industrial equipment and various DIY electronics projects.

    Bridge Symbol:

    Bridge Part Code:

    • AC Input 1 (~ or AC1) – Connects to one side of the AC power source
    • AC Input 2 (~ or AC2) – Connects to the other side of the AC power source
    • Positive Output (+ or Vout+) – Provides the rectified DC positive voltage
    • Negative Output (- or Vout-) – Provides the rectified DC negative voltage (ground)



    Enhance circuit reliability with diodes designed for rectification, switching, current control and protection applications.

    Package Includes

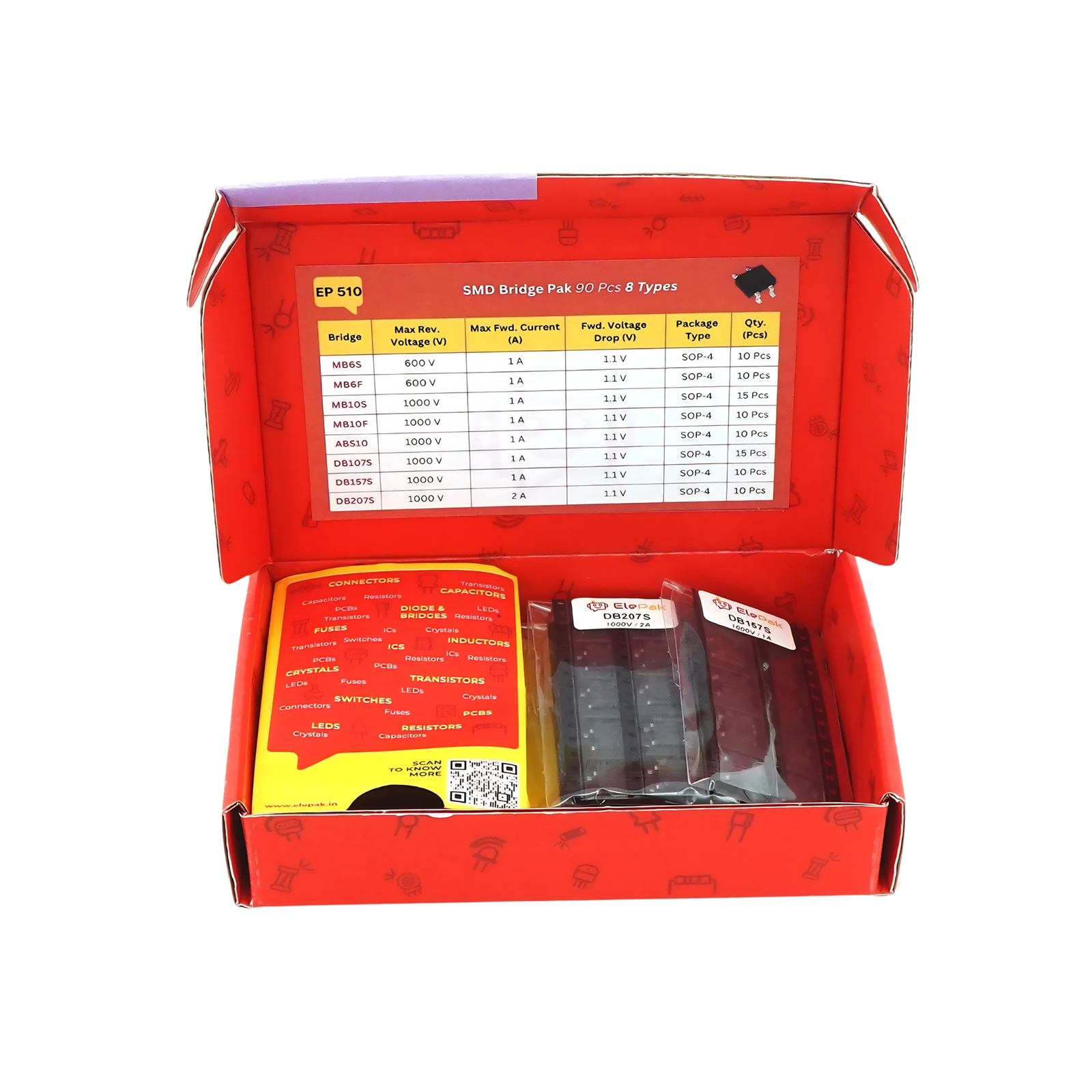

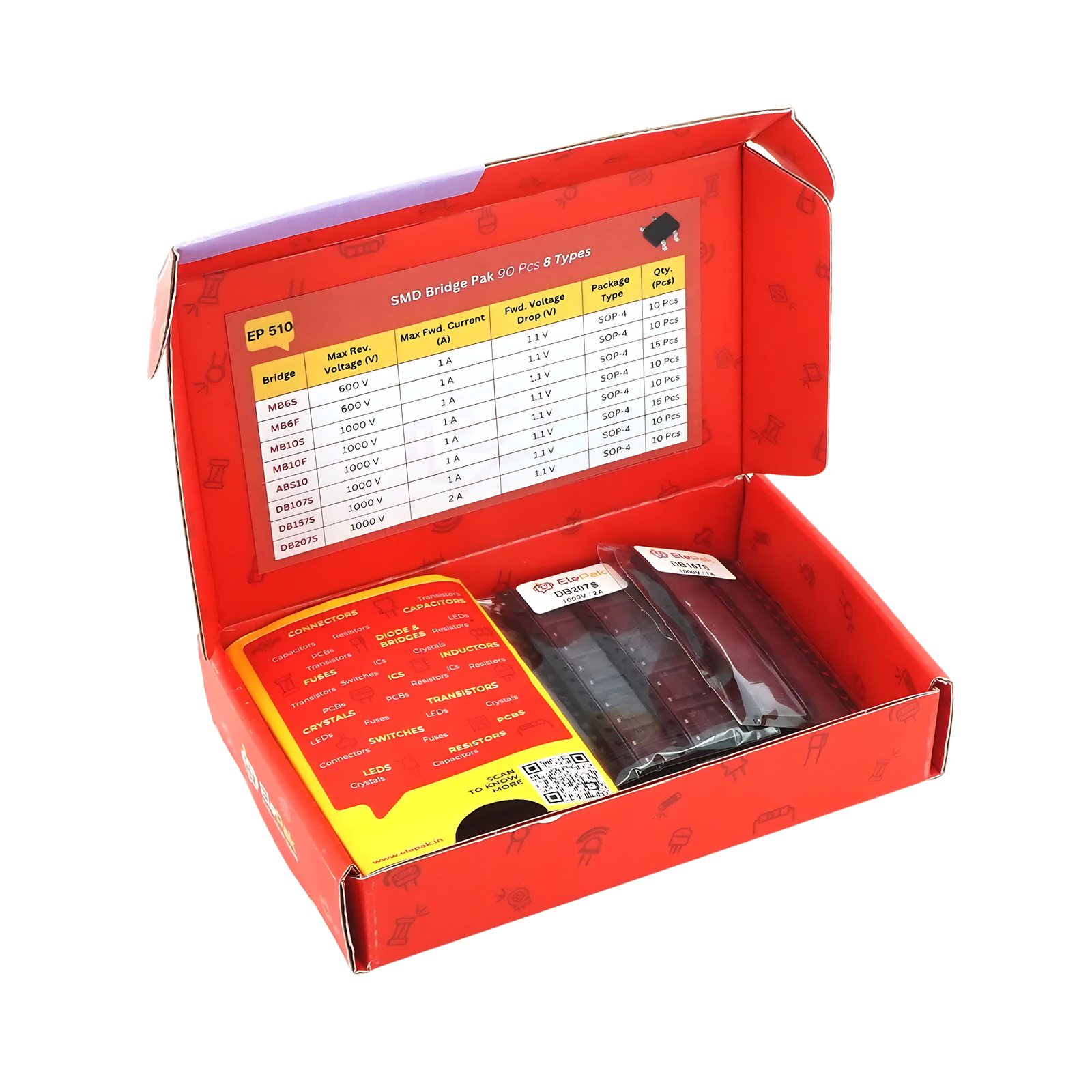

    90 SMD Bridge 8 Types

    • MB6S – 10 Pcs
    • MB6F – 10 Pcs
    • MB10S – 15 Pcs
    • MB10F – 10 Pcs
    • ABS10 – 10 Pcs
    • DB107S – 15 Pcs
    • DB157S – 10 Pcs
    • DB207S – 10 Pcs

    Features:

    • Compact Size
    • Automated Assembly
    • High Efficiency
    • Durable & Reliable
    • Better Heat Dissipation
    • Versatile Applications
    • Faster Switching

    Applications:

    • Power Supplies (SMPS, Adapters) - Converts AC to DC for stable power.
    • LED Drivers – Provides rectified DC for LED lighting.
    • Battery Chargers – Ensures efficient AC-to-DC conversion.
    • Motor Drives – Used for rectification in motor control circuits.
    • Industrial Equipment – Essential for automation and power regulation.
    1. What does MB, DB, and ABS in rectifier names mean?

    ⋙ They refer to different series and package types used in SMD bridge rectifiers.

    2. How do I check if an SMD bridge rectifier is working?

    ⋙ Use a multimeter in diode mode to test voltage drops across terminals.

    3. Are SMD bridge rectifiers polarity-sensitive?

    ⋙ Yes, AC inputs (~) must be connected correctly, and DC outputs (+/-) must not be reversed.

    4. Can an SMD bridge rectifier be used in DC circuits?

    ⋙ No, it is specifically designed for AC-to-DC conversion.

    5. How do I protect an SMD bridge rectifier from voltage spikes?

    ⋙ Use diodes or MOVs (Metal Oxide Varistors) for protection.

    6. Is this pack suitable for beginners and hobbyists?

    ⋙ Yes, it’s ideal for learning, prototyping, and small-scale projects.

    7. Are these bridge rectifiers compatible with all PCB types?

    ⋙ Yes, as long as the footprint matches the PCB design.

    8. Are these rectifiers compatible with Raspberry Pi or Arduino circuits?

    ⋙ Yes, for power conversion in electronics projects.

    9. Do these rectifiers have polarity markings?

    ⋙ Yes, most have clear markings for AC and DC terminals.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
