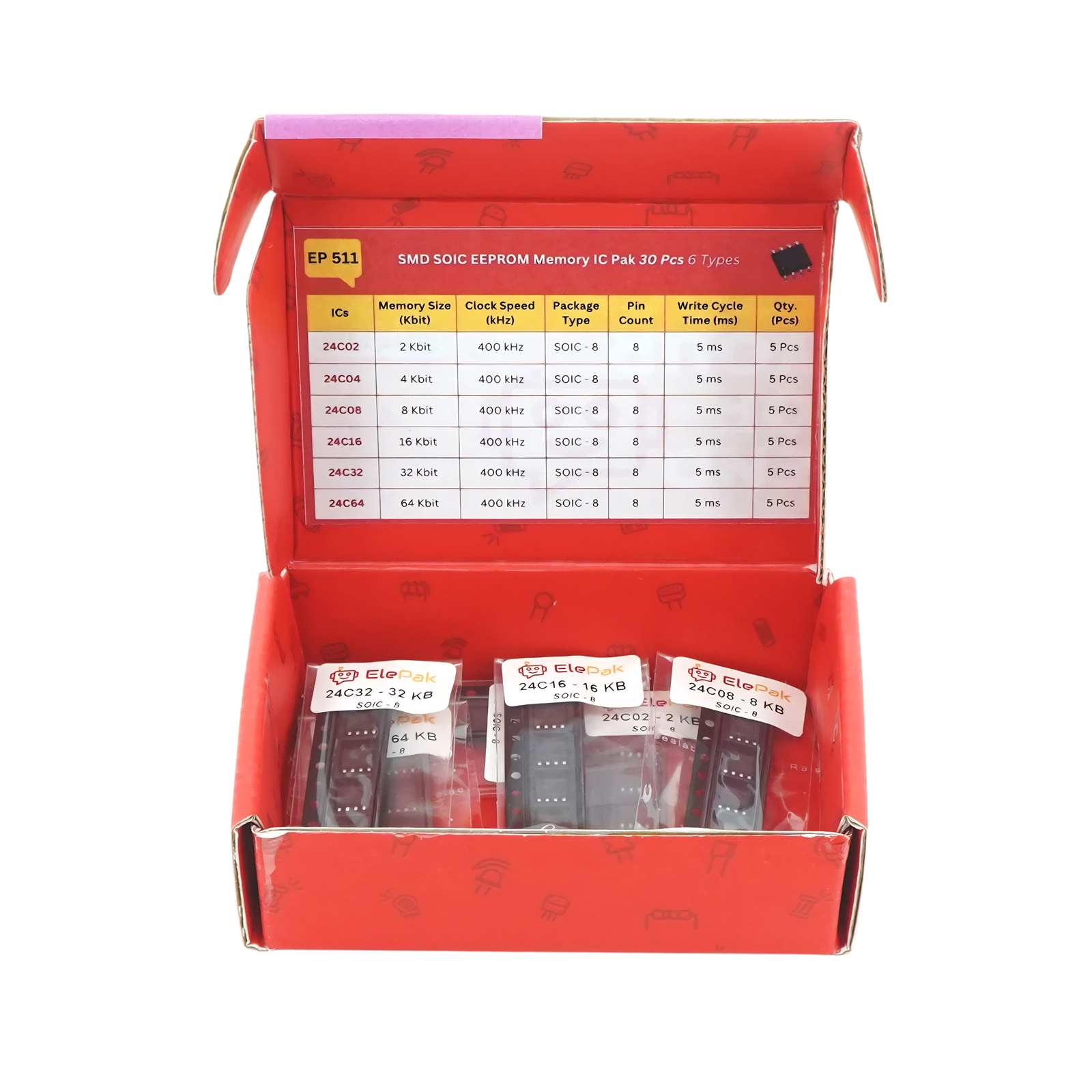

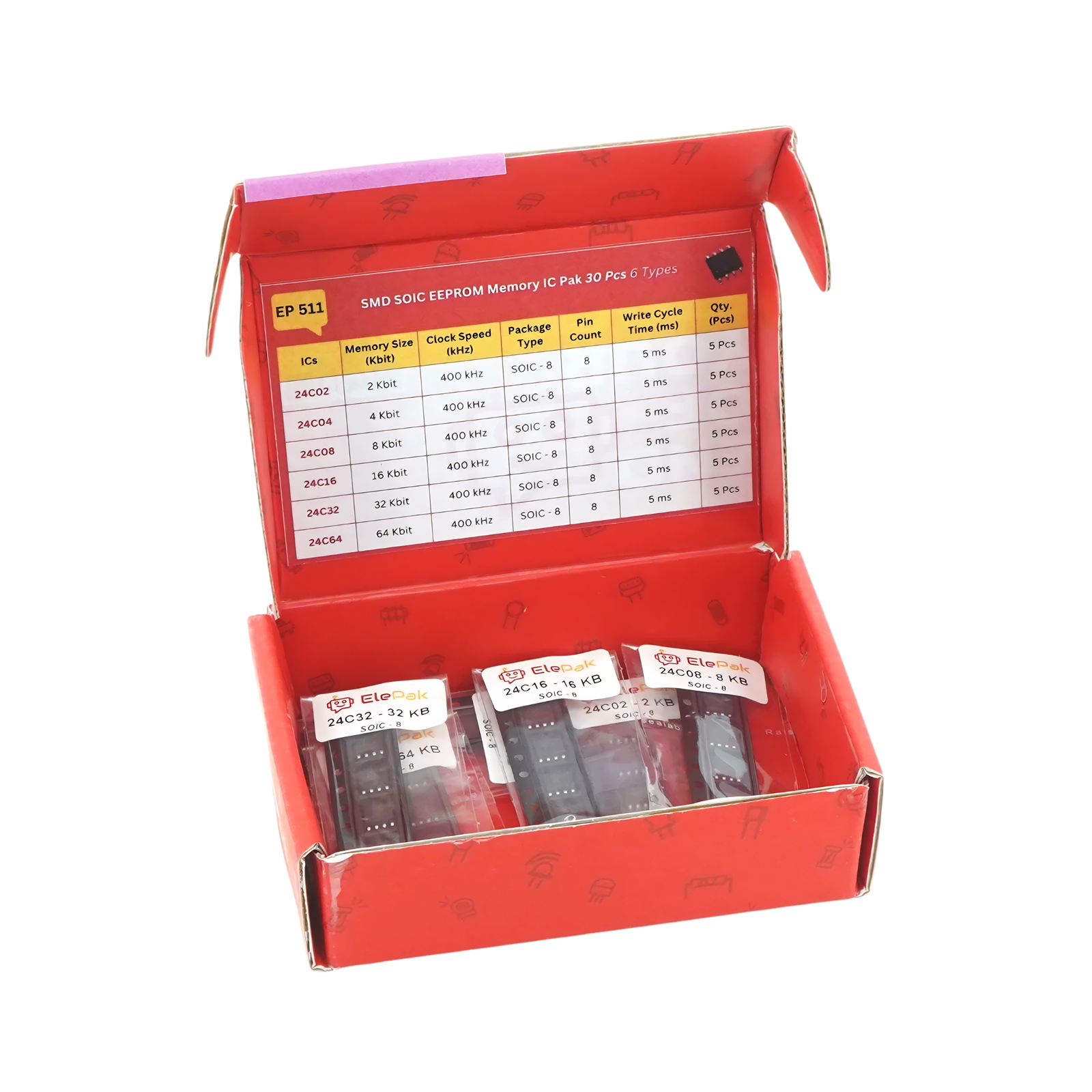

    SMD SOIC Memory IC Pak 30 Pcs 6 Types

    SKU: EP511

    Technical Specification:

    • Type: SMD
    • Model: EEPROM Memory IC
    • Package Type: SOIC – 8
    • Memory Size: 2 Kbit – 64 Kbit
    • Clock Speed: 400 KHz
    • Write Cycle Time: 5 ms
    • Pin Count: 8
    • Pak Weight: 60 gm
    • Pak Dimensions: 90 x 60 x 24 mm

    ₹545.00

    Add to wishlist

    Description

    SMD SOIC Memory IC Pak 30 Pcs 6 Types

    The SMD SOIC Memory IC Pak is a useful assortment of surface-mount memory integrated circuits for electronic design, repair and testing applications. This pack contains 30 ICs in 6 different types, offering a convenient selection for prototyping, component replacement and circuit development.

    Designed in compact SOIC packages, these memory ICs are suitable for space-saving PCB layouts and SMD assembly. The SMD SOIC Memory IC Pak can be used in embedded systems, control boards, communication devices, data-storage circuits, consumer electronics and DIY projects.

    EEPROM IC Symbol:

    EEPROM IC Pin Description:



    Explore a wide range of DIP integrated circuits for logic, timing, amplification, interfacing and voltage regulation applications.

    Package Includes

    30 SMD SOIC EEPROM Memory IC 6 Types

    • 24C02 – 5 Pcs
    • 24C04 – 5 Pcs
    • 24C08 – 5 Pcs
    • 24C16 – 5 Pcs
    • 24C32 – 5 Pcs
    • 24C64 – 5 Pcs

    Features:

    • Wide range of memory sizes
    • Standard SOIC-8 package
    • I²C communication interface
    • High write/erase endurance (1 million cycles)
    • Long data retention (>100 years)
    • Industrial temperature range (-40°C to +85°C)
    • Compatible with most microcontrollers

    Applications:

    • Embedded Systems - Store critical configuration and runtime data in microcontroller-based projects
    • IoT Devices - Retain sensor readings, device settings, and status logs in low-power smart gadgets
    • Data Logging - Capture and store environmental or event-based data for later analysis
    • Consumer Electronics - Used in TVs, remotes, and home appliances for storing user settings
    • Automotive Electronics - Save calibration data, error logs, and operational parameters
    1. How do I interface an EEPROM IC with a microcontroller?

    ⋙ You can interface the EEPROM IC with a microcontroller using the I²C protocol for communication.

    2. How do I erase data from an EEPROM IC?

    ⋙ Data in an EEPROM IC is erased and rewritten byte-by-byte through the I²C interface.

    3. What is the benefit of purchasing the 30 pcs pack?

    ⋙ The pack provides a cost-effective way to stock up on multiple types of EEPROM ICs for different projects or repairs.

    4. Are these EEPROM ICs compatible with Arduino or Raspberry Pi?

    ⋙ Yes, these EEPROM ICs can easily be interfaced with Arduino, Raspberry Pi, and other microcontroller platforms.

    5. Is this pack suitable for beginners in electronics?

    ⋙ Yes, this pack is great for beginners, offering a variety of memory sizes for learning and prototyping.

    6. Are these ICs easily soldered onto PCBs?

    ⋙ Yes, these ICs come in SOIC-8 packages, which are relatively easy to solder onto most PCBs.

    7. Are the EEPROM ICs pre-programmed?

    ⋙ No, the EEPROM ICs are blank and ready to be programmed with your data.

    8. How do I read data from these EEPROM ICs?

    ⋙ Data can be read by sending I²C read commands to the EEPROM IC, which then transmits the stored data back.

    9. Are these EEPROM ICs compatible with all microcontrollers?

    ⋙ Yes, they are compatible with any microcontroller that supports I²C communication, such as Arduino, Raspberry Pi, and STM32.

    10. Can I purchase specific types individually rather than in a pack?

    ⋙ This product is sold as a complete pack, but individual types may be available separately upon bulk request.
